Home /Products/Toros Mini Excavator/Crawler Toros Mini Excavator 2.6 Ton Small Digging Equipment For Road Repair

Crawler Toros Mini Excavator 2.6 Ton Small Digging Equipment For Road Repair

1 PCS

MOQ

$18500-$19000 1 PCS

Price

Crawler Toros Mini Excavator 2.6 Ton Small Digging Equipment For Road Repair

Features Gallery Product Description Request A Quote

Features

Specifications

Total Length*width*height (during Transportation): 3850*1300*2380 Mm

Dozer Blade Width (extend/retract): 1300/1500 Mm

Dozer Blade Height: 292 Mm

Track Center Distance: 1050/1250 Mm

Bucket Capacity: 0.066 M3

Displacement: 1.116 L

Swing Angle: 75/55 °

Gradeability: 58（30）°

Bucket Digging Force: 18.4 KN

Highlight:

Crawler Toros Mini Excavator

,

Toros Mini Excavator 2.6 Ton

,

2.6 Ton Small Digging Equipment

Basic Infomation

Place of Origin: China

Brand Name: TOROS

Certification: CE\EPA\EURO 5

Model Number: TE-26S

Payment & Shipping Terms

Packaging Details: Standard International Ocean Shipping

Delivery Time: 30 Work Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union,

Supply Ability: 100 PCS/Week

Gallery

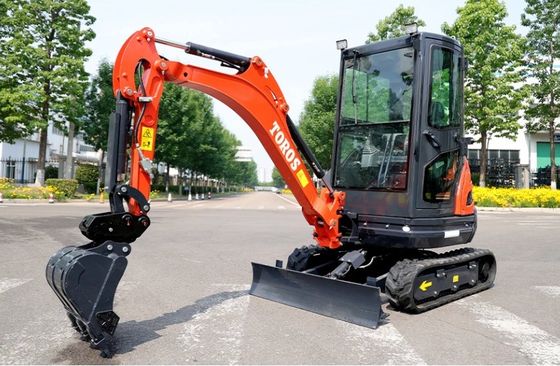

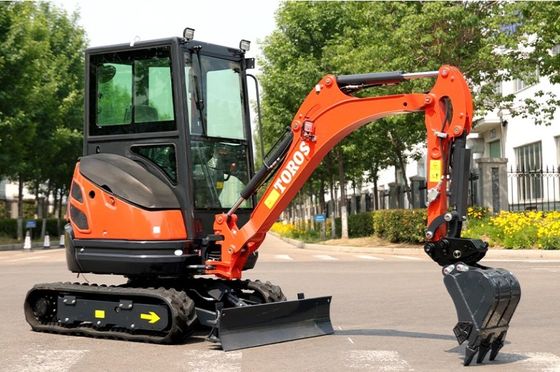

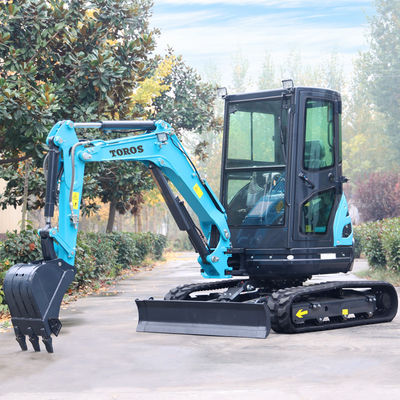

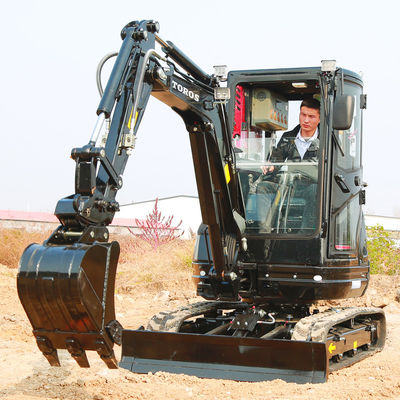

Crawler Toros Mini Excavator 2.6 Ton Small Digging Equipment For Road Repair

Product Description

Hot selling mini excavators support factory customization

The one-year free warranty service for this model has started!

Click The Inquiry Below To Get The Best Price!

With closed cab has a more spacious working surface, which ensures the safety of the operators on the machine, and prevents the sudden stones and sundries from causing personal injury. It also allows the staff to have a warm and comfortable environment in the harsh working environment. It is suitable for small-scale earthwork engineering, municipal engineering, road repair, basement and indoor construction, concrete crushing, buried cables, laying of water pipes, garden cultivation and dredging of river channels.

Crawler Toros Mini Excavator 2.6 Ton Small Digging Equipment For Road Repair 0

total measurement
Total lengthwidthheight (during transportation)						385013002380 mm
Dozer blade width (extend/retract)						1300/1500 mm
Dozer blade height						292 mm
Track center distance						1050/1250 mm
Distance from the center of rotation to the tail of the track						930 mm
Standard track shoe width						250 mm
Minimum ground clearance						170mm
Standard bucket width (with/without side teeth)						460 / 410 mm
Track length						1860 mm
Wheel spacing						1475 mm
Scope of work
Maximum digging height						3880 mm
Maximum unloading height						2550 mm
Maximum digging depth						2320 mm
Maximum vertical boom digging depth						1900 mm
Maximum digging distance						4140 mm
Maximum digging distance on the ground						4015 mm
Minimum radius of gyration of the front section						1850 mm
The minimum radius of gyration at the rear end						710 mm
Maximum bulldozing height						340 mm
Maximum bulldozing depth						270 mm
Bucket moves horizontally to the left						620 mm
Bucket moves horizontally to the right						590 mm
Performance parameter
Total Weight						2480 kg /2630 kg
Bucket capacity						0.066 m3
engine model						3TNV76-F
Displacement						1.116 L
rated power						15KW/rpm
Walking speed (high/low)						2.4/4.2 KM/h
Swing speed						9.5 r/min
Swing angle						75/55 °
Gradeability						58(30)°
Ground pressure						28.4(0.29)
Bucket digging force						18.4 KN
Fuel tank capacity						28 L

Crawler Toros Mini Excavator 2.6 Ton Small Digging Equipment For Road Repair 4
