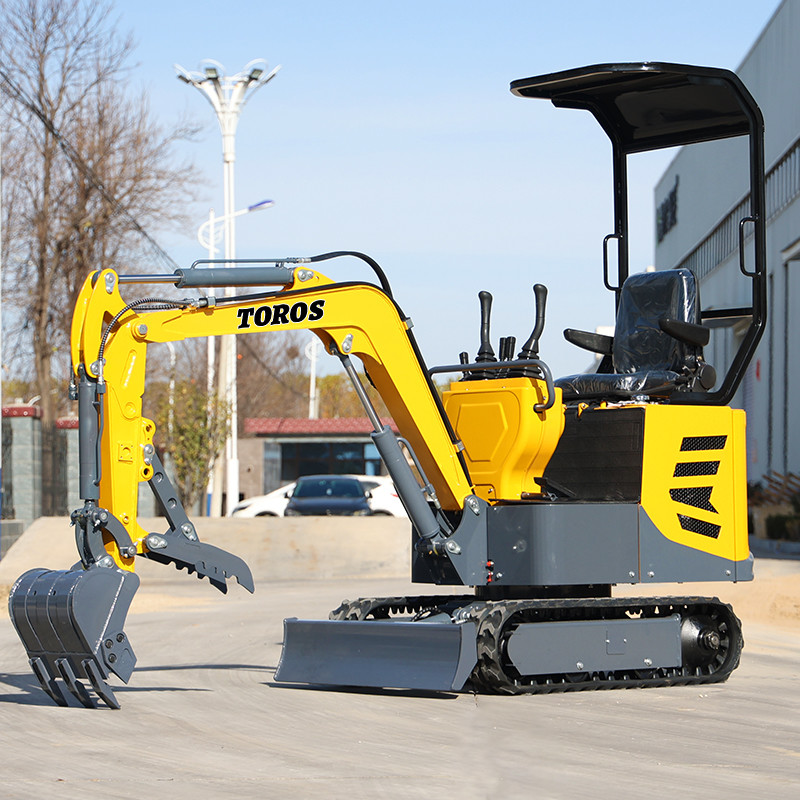

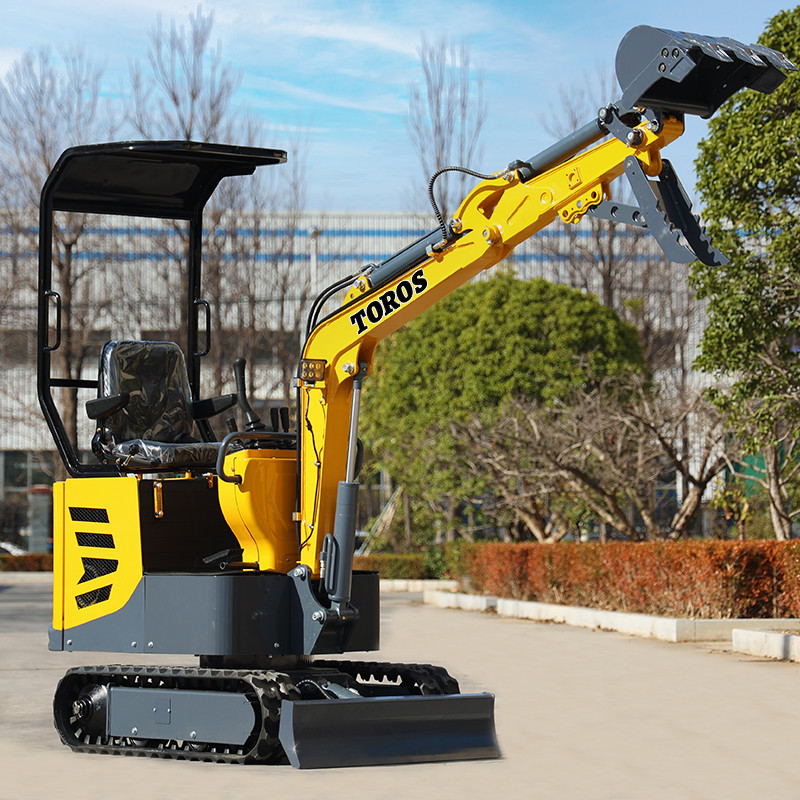

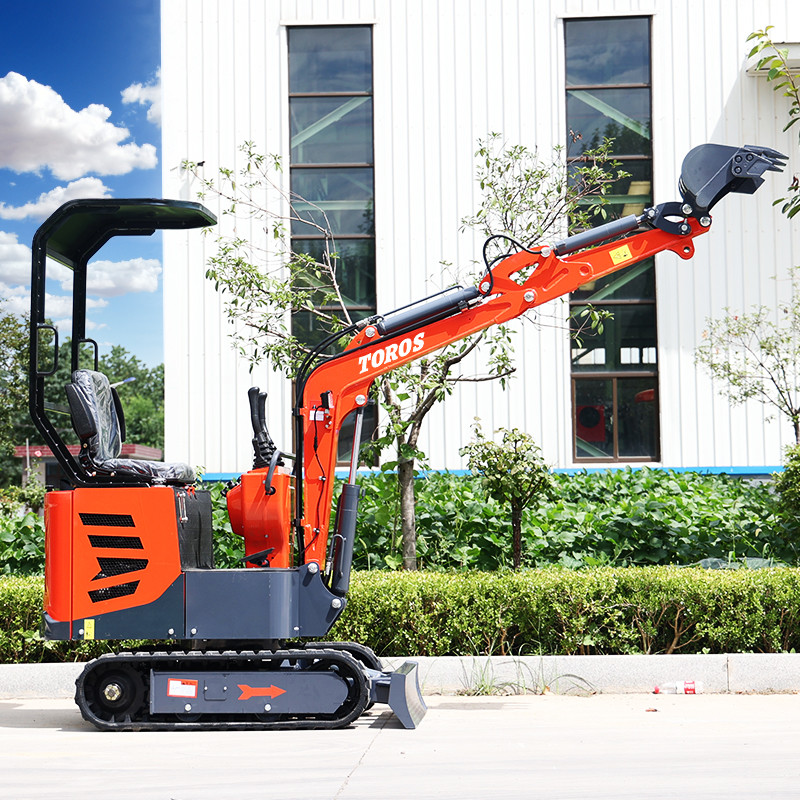

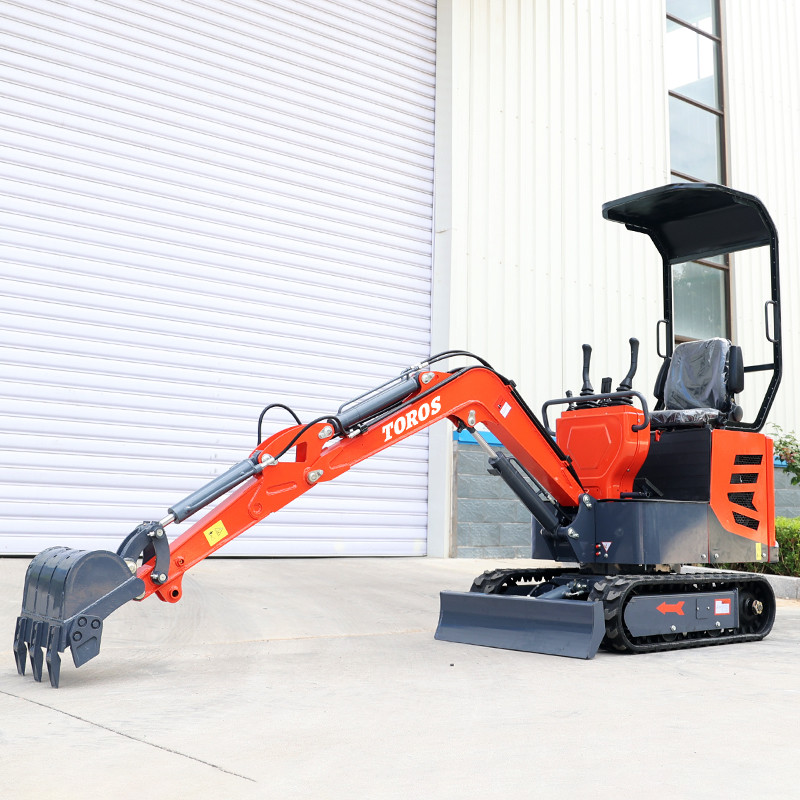

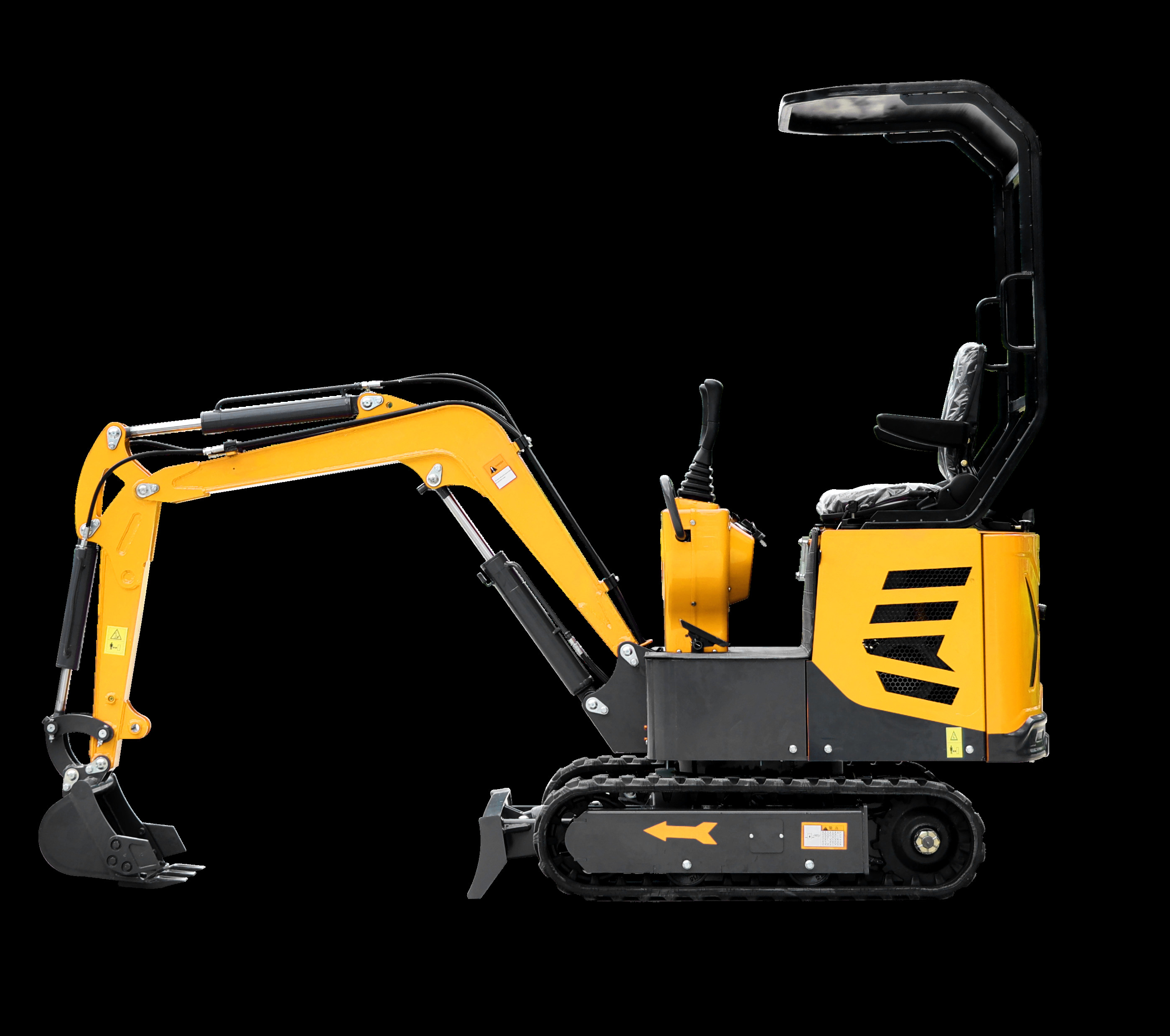

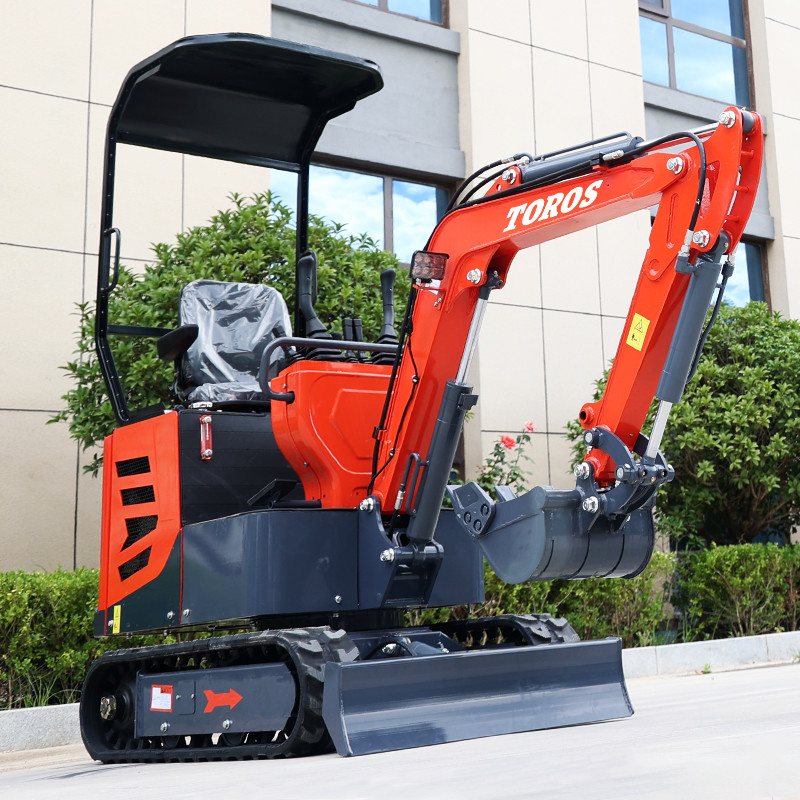

Multifunctional Toros Mini Excavator 1 Ton Micro Digger With Koop Engine

Multifunctional Toros Mini Excavator 1 Ton Micro Digger With Koop Engine

Brand Name:	TOROS
Model Number:	TE-10
MOQ:	1 PCS
Price:	USD 3650-3850 1PCS
Delivery Time:	30 Work Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE\EPA\EURO 5

Operating Weight:

1ton

Maximum Digging Height:

2450MM

Machine Weight:

1000 Kg

Gradeability:

≤38°

Warranty Of Core Components:

1 Year

Engine:

Koop

Color:

Customer Demanded

Overall Length (transportation):

2870 Mm

Maximum Digging Force:

65KN

Packaging Details:

Standard International Ocean Shipping

Supply Ability:

1 PCS

Highlight:

Multifunctional Toros Mini Excavator

Multifunctional 1 Ton Micro Digger

Product Description

Hot selling mini excavators support factory customization

1-Year Machine Warranty Service Has Been Opened!

Click The Inquiry Below To Get The Best Price!

An ultra-compact but robust machine with a very short tail design for easy access to tight spaces, elevator access, and indoor excavation and demolition. Its small size and light weight make it easy to transport on a very small trailer or a pickup, making it ideal model for small working sites.

Multifunctional Toros Mini Excavator 1 Ton Micro Digger With Koop Engine 0

Total measurement
Total lengthwidth height(during transportation)						287093022813mm
Dozer blade width (extend/retract)						937mm
Dozer blade height						210mm
Track center distance						746mm
Standard track shoe width						180mm
ground clearance						365mm
Standard bucket width (with/without tooth)						380/330mm
Track length						1200mm
Wheel spacing						920mm
Scope of work
Maximum digging height						2450mm
Maximum unloading height						1710mm
Maximum digging depth						1760mm
Maximum vertical boom digging depth						1690mm
Maximum digging distance						3030mm
Maximum digging distance on the ground						2940mm
Minimum radius of gyration of the front section						1490mm
Maximum push height						100mm
Maximum push depth						230mm
Performance parameter
Operating Weight						1000kg
Bucket capacity						0.022m³
engine model						KOOP 192F/B&S
Displacement						1.5L/H
rated power						7.6kw/9.9KW
Walking speed (high/low)						1.2km/h
Swing speed						9r/min
Gradeability						30°
Ground pressure						16Mpa
Bucket digging force						6.5kN
Fuel tank volume						18L
