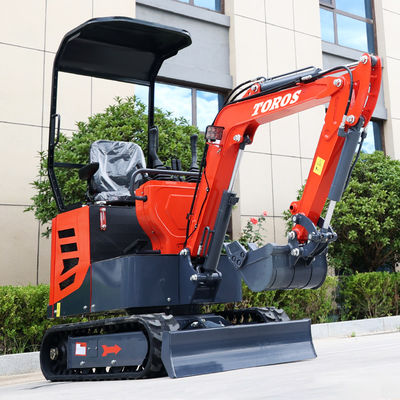

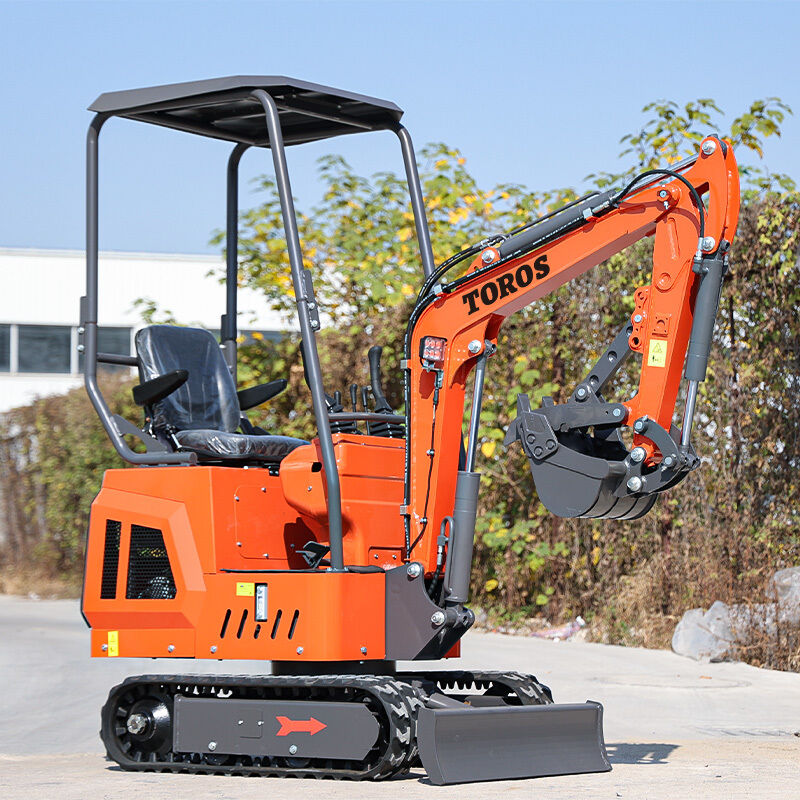

Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI Engine

1 PCS
MOQ
USD 3650-3850 1PCS
Price
Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Weight: 1ton
Maximum Digging Height: 2450MM
Machine Weight: 1000 Kg
Gradeability: ≤38°
Warranty Of Core Components: 1 Year
Engine: YUCHAI (4105 Turbocharged)
Color: Customer Demanded
Overall Length (transportation): 2870 Mm
Maximum Digging Force: 65KN
High Light:

Multifunctional Toros Mini Excavator

,

Multifunctional 1 Ton Micro Digger

Basic Infomation
Place of Origin: China
Brand Name: TOROS
Certification: CE\EPA\EURO 5
Model Number: TE-10
Payment & Shipping Terms
Packaging Details: Standard International Ocean Shipping
Delivery Time: 30 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 1 PCS
Product Description

Hot selling mini excavators support factory customization

1-Year Machine Warranty Service Has Been Opened!

Click The Inquiry Below To Get The Best Price!

An ultra-compact but robust machine with a very short tail design for easy access to tight spaces, elevator access, and indoor excavation and demolition. Its small size and light weight make it easy to transport on a very small trailer or a pickup, making it ideal model for small working sites.

Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 0Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 1Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 2Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 3



Total measurement
Total length*width* height(during transportation) 2870*930*22813mm
Dozer blade width (extend/retract) 937mm
Dozer blade height 210mm
Track center distance 746mm
Standard track shoe width 180mm
ground clearance 365mm
Standard bucket width (with/without tooth) 380/330mm
Track length 1200mm
Wheel spacing 920mm
Scope of work
Maximum digging height 2450mm
Maximum unloading height 1710mm
Maximum digging depth 1760mm
Maximum vertical boom digging depth 1690mm
Maximum digging distance 3030mm
Maximum digging distance on the ground 2940mm
Minimum radius of gyration of the front section 1490mm
Maximum push height 100mm
Maximum push depth 230mm
Performance parameter
Operating Weight 1000kg
Bucket capacity 0.022m³
engine model KOOP 192F/B&S
Displacement 1.5L/H
rated power 7.6kw/9.9KW
Walking speed (high/low) 1.2km/h
Swing speed 9r/min
Gradeability 30°
Ground pressure 16Mpa
Bucket digging force 6.5kN
Fuel tank volume 18L

Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 4Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 5Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 6Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 7Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 8Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 9Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 10Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 11Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 12Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 13Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 14Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 15Multifunctional Toros Mini Excavator 1 Ton Micro Digger With YUCHAI  Engine 16
